Why Choose EVE C40?
Superior Performance: The EVE C40 demonstrates better performance during discharge, maintaining a more stable voltage platform.
Higher Capacity: While other 19.5~20Ah batteries offer standard capacities, the EVE C40 provides 20~20.5Ah, making it a more efficient choice.
Automotive Grade: Classified as automotive grade, the EVE C40 boasts enhanced performance and reliability, although it comes at a higher price point.
Average Capacity (3.65V~2.5V): 20,500mAh (0.33C discharge)
Minimum Capacity (3.65V~2.5V): 20Ah (0.33C discharge)
AC-IR: <2mΩ
End-of-charge Voltage: 3.65V
End-of-discharge Voltage: 2.5V (0℃), 2.0V (T≤0℃)
Nominal Voltage: 3.2V
Standard Charging Current: 6,600mA
Max Charge Current: 20A
Standard Discharge Current: 6,600mA
Max Discharge Current: 60A
Cell Weight: 374g max

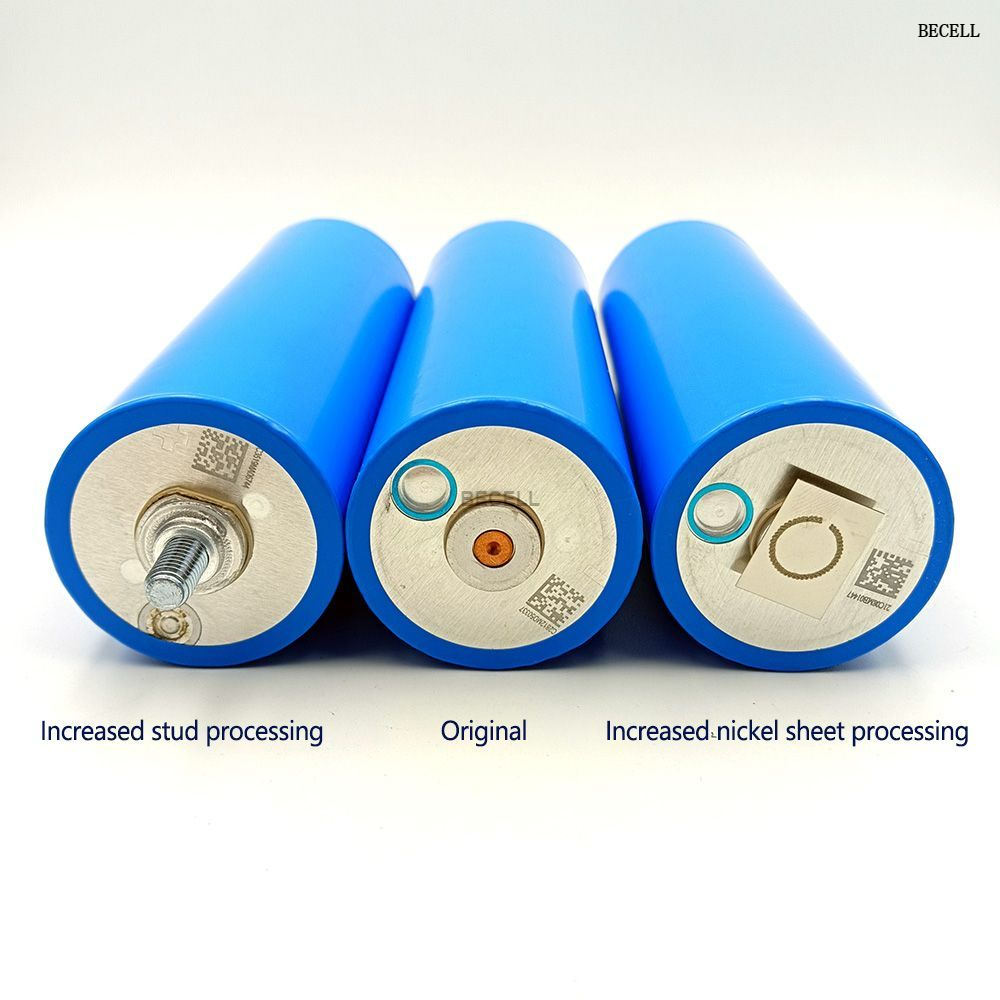

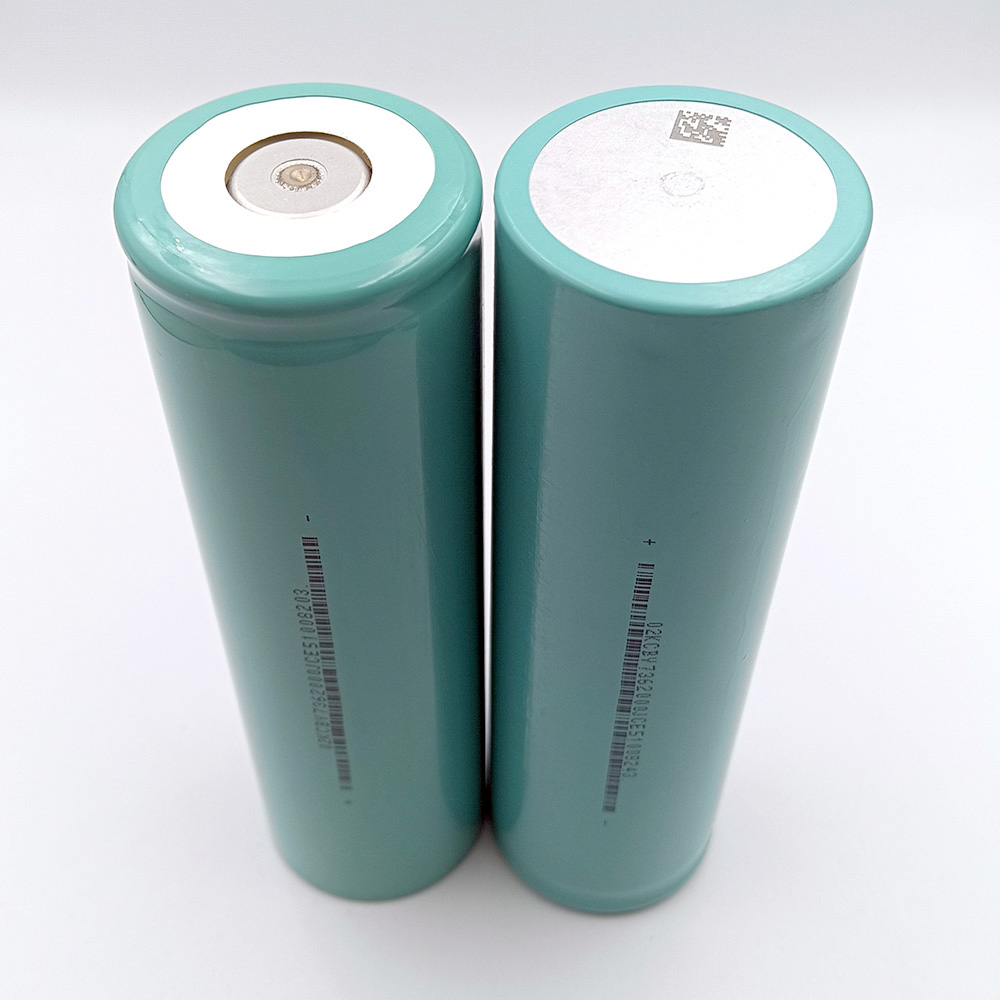

If budget constraints are a concern, we also recommend the flat-top 40135-20Ah battery. This model can be directly high-frequency welded and offers the following specifications:
Rated Capacity: 20Ah (0.5C discharge)
AC-IR: <3mΩ
Standard Charging Current: 20Ah
Discharge Rate: 20A continuous, 60A pulse
If you have specific requirements for 3.2V 20Ah batteries, feel free to reach out to us. We provide tailored solutions to meet your needs.
For more information or to discuss your battery requirements, please contact us. We are here to provide you with the best options available in the market.

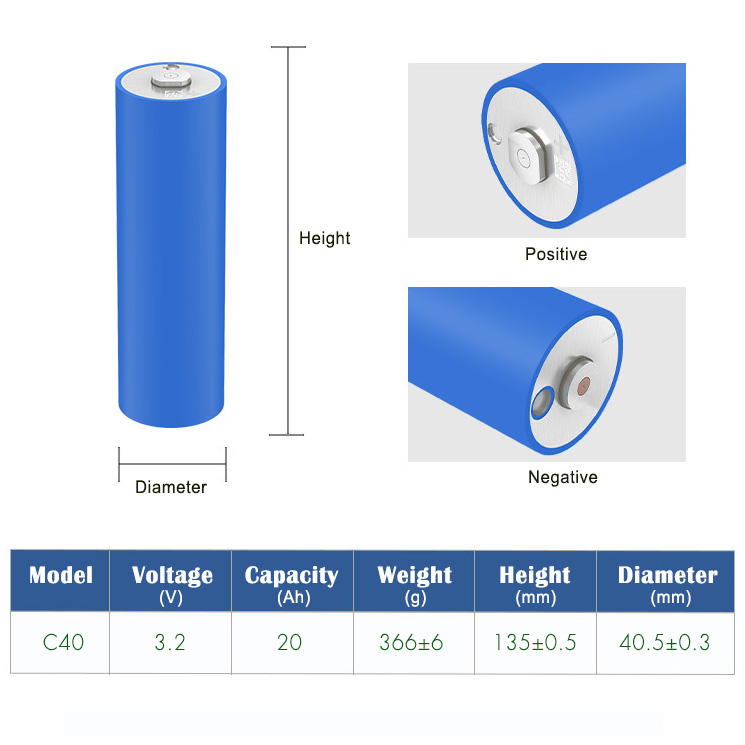

C40 specification:
《C40 产品规格书》RD-C40-D02-02 储能版.pdf
40135 specification:鹏辉IFR40135-20Ah specification 20230721.pdf
