Customizable 6S (22.2V) Semi-Solid and Solid-State Lithium-Ion Battery Packs
Our company specializes in delivering high energy density semi-solid and solid-state lithium-ion batteries tailored to meet the diverse needs of industries demanding lightweight, high-capacity, and high-discharge-rate solutions. Among our offerings, the 6S (22.2V) semi-solid lithium-ion battery packs stand out as premium energy solutions for drones, agricultural UAVs, aircraft, FPV racing drones, and other applications requiring cutting-edge battery technology.
Semi-Solid and Solid-State Technology
Utilizing advanced semi-solid lithium-ion technology, our 6S battery packs provide enhanced safety, improved cycle life, and reduced weight compared to traditional liquid-electrolyte batteries. The high energy density of 270Wh/kg to 320Wh/kg ensures maximum performance in compact and portable designs.
Wide Range of Customizable Capacities
Our 6S series supports various capacities, including 16Ah, 17.5Ah, 22Ah, 24Ah, 27Ah, 29Ah, 30Ah, 32Ah, and 35Ah, with fully customizable options to suit specific requirements.
High Discharge Rate
Designed for high-performance applications, these packs deliver a 10C discharge rate, enabling reliable power for devices with demanding energy needs.
Compact and Lightweight Design
With optimized dimensions ranging from 193*75*47mm to 211*90*65mm and weights between 1.42kg to 2.65kg, these battery packs ensure portability without compromising energy output.
Outstanding Energy and Voltage Performance
Each pack offers a nominal voltage of 22.2V, a full charge voltage of 25.2V, and a cut-off voltage of 16.8V, delivering consistent and efficient power. Energy output varies by model, ranging from 355.2Wh to 777Wh, catering to various applications.
The 6S semi-solid lithium-ion battery packs are ideal for:
Drones: Providing reliable, long-lasting power for UAVs and professional drones.
Agricultural UAVs: Supporting high-energy demands in crop monitoring and pesticide spraying.
FPV Racing Drones: Ensuring peak performance during high-speed racing and aerobatics.
Aircraft and Electric Devices: Powering advanced systems with high energy density requirements.

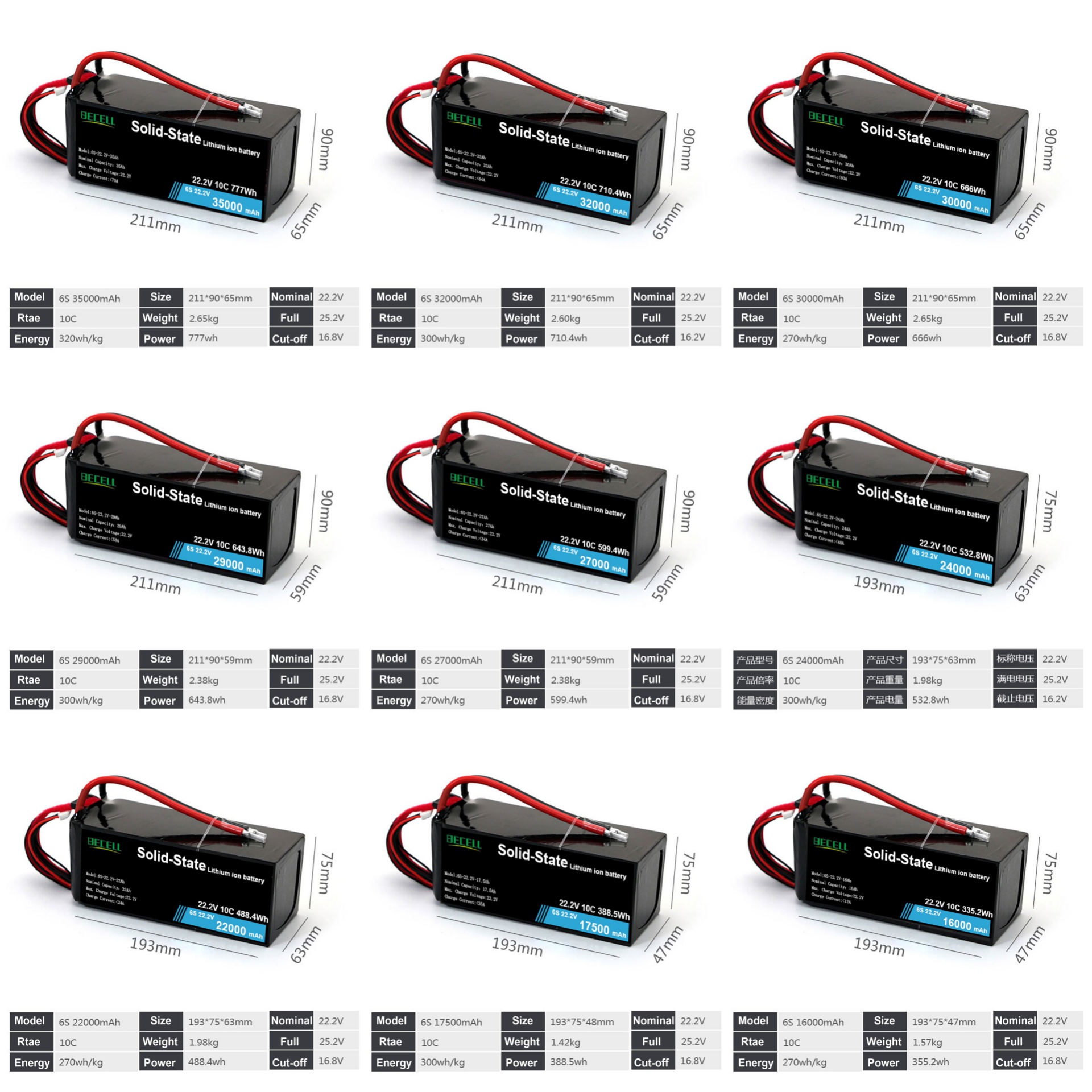

| Model | Capacity | Energy Density | Dimensions | Weight | Energy | Nominal Voltage | Full Charge Voltage | Cut-Off Voltage |
|---|---|---|---|---|---|---|---|---|
| 6S 16000mAh | 16Ah | 270Wh/kg | 193*75*47mm | 1.57kg | 355.2Wh | 22.2V | 25.2V | 16.8V |
| 6S 17500mAh | 17.5Ah | 300Wh/kg | 193*75*48mm | 1.42kg | 388.5Wh | 22.2V | 25.2V | 16.2V |
| 6S 22000mAh | 22Ah | 270Wh/kg | 193*75*63mm | 1.98kg | 488.4Wh | 22.2V | 25.2V | 16.8V |
| 6S 24000mAh | 24Ah | 300Wh/kg | 193*75*63mm | 1.98kg | 532.8Wh | 22.2V | 25.2V | 16.2V |
| 6S 27000mAh | 27Ah | 270Wh/kg | 211*90*59mm | 2.38kg | 599.4Wh | 22.2V | 25.2V | 16.8V |
| 6S 29000mAh | 29Ah | 300Wh/kg | 211*90*59mm | 2.38kg | 643.8Wh | 22.2V | 25.2V | 16.2V |
| 6S 30000mAh | 30Ah | 270Wh/kg | 211*90*65mm | 2.65kg | 666Wh | 22.2V | 25.2V | 16.8V |
| 6S 32000mAh | 32Ah | 300Wh/kg | 211*90*65mm | 2.60kg | 710.4Wh | 22.2V | 25.2V | 16.2V |
| 6S 35000mAh | 35Ah | 320Wh/kg | 211*90*65mm | 2.65kg | 777Wh | 22.2V | 25.2V | 16.8V |
Customizable: Tailored configurations and capacities to meet your needs.
High Energy Density: Compact and lightweight with exceptional energy storage.
Durable: Designed for long life cycles and superior safety.
We welcome inquiries for custom semi-solid lithium-ion battery packs. Contact us to explore how we can meet your energy storage needs!
