Customizable Semi-Solid-State Lithium-Ion Batteries and Battery Packs
We specialize in high-performance semi-solid-state lithium-ion batteries and battery packs tailored to meet the most demanding energy requirements. Our 14S (51.8V) series semi-solid-state battery packs are designed to deliver exceptional energy density, reliability, and efficiency, making them ideal for applications such as drones, agricultural UAVs, aircraft, and high-performance electronic devices.
Type: Soft-pack/Pouch Cell/Semi-Solid-State/Solid-State Lithium-Ion Batteries (High Discharge Rate).
Nominal Voltage: 3.7V.
Energy Density: 300Wh/kg – 350Wh/kg.
Capacity Options: 16Ah, 17.5Ah, 22Ah, 24Ah, 27Ah, 29Ah, 30Ah, 32Ah, 35Ah (custom capacities available).
Configuration and Voltage: 16S, 51.8V (other configurations available upon request).
Capacity Options: 16Ah, 17.5Ah, 22Ah, 24Ah, 27Ah, 29Ah, 30Ah, 32Ah, 35Ah (custom capacities available).
Energy Density: 270Wh/kg – 320Wh/kg.
Applications: Perfect for drones, agricultural spraying machines, aircraft, racing drones, and other high energy density applications.

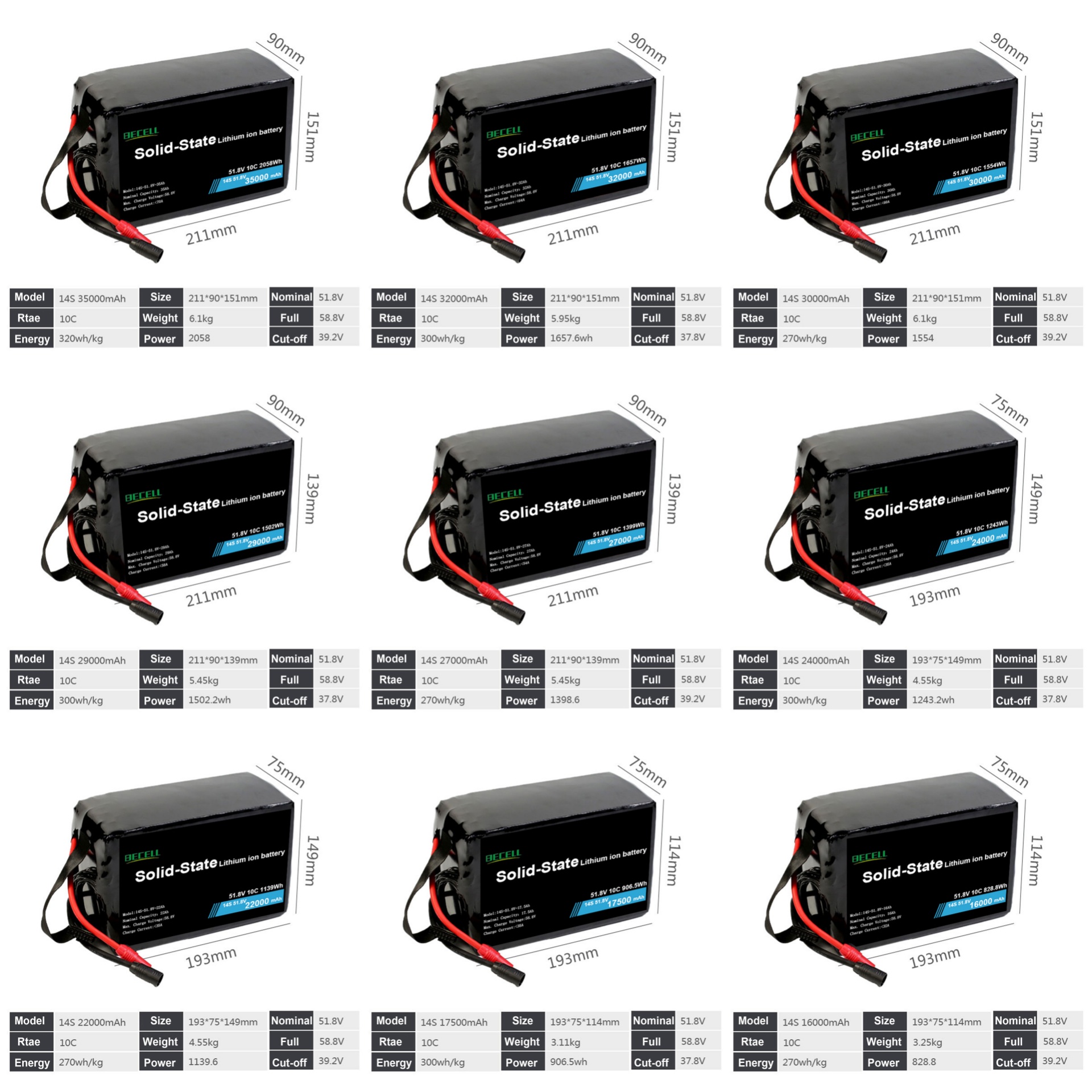

| Capacity (mAh) | Nominal Voltage (V) | Energy Density (Wh/kg) | Product Weight (kg) | Product Size (mm) | Full Voltage (V) | Cut-off Voltage (V) | Energy (Wh) |
|---|---|---|---|---|---|---|---|
| 16000mAh | 51.8 | 270 | 3.25 | 193×75×114 | 58.8 | 39.2 | 828.8 |
| 17500mAh | 51.8 | 300 | 3.11 | 193×75×114 | 58.8 | 37.8 | 906.5 |
| 22000mAh | 51.8 | 270 | 4.55 | 193×75×149 | 58.8 | 39.2 | 1139.6 |
| 24000mAh | 51.8 | 300 | 4.55 | 193×75×149 | 58.8 | 37.8 | 1243.2 |
| 27000mAh | 51.8 | 270 | 5.45 | 211×90×139 | 58.8 | 39.2 | 1398.6 |
| 29000mAh | 51.8 | 300 | 5.45 | 211×90×139 | 58.8 | 37.8 | 1502.2 |
| 30000mAh | 51.8 | 270 | 6.1 | 211×90×151 | 58.8 | 39.2 | 1554 |
| 32000mAh | 51.8 | 300 | 5.95 | 211×90×151 | 58.8 | 37.8 | 1657.6 |
| 35000mAh | 51.8 | 320 | 6.1 | 211×90×151 | 58.8 | 39.2 | 2058 |
High Energy Density: With energy densities of up to 350Wh/kg, our batteries ensure longer operational times and lighter designs for your devices.
Customizability: We provide fully customizable battery packs and cells to meet unique application requirements.
Reliability: Our batteries are designed for high discharge rates (10C), ensuring optimal performance in demanding conditions.
Wide Application Scope: Ideal for use in drones, agricultural machinery, UAVs, and more.
We are proud to deliver high-density semi-solid-state lithium-ion batteries and battery packs with exceptional performance. Whether you need specific configurations, capacities, or energy requirements, we are here to collaborate and develop tailored solutions for your needs.
Contact us today for custom semi-solid-state battery solutions!
