News of BYD's lithium iron phosphate 4680 battery. There is very little supply of BYD's two batteries with a diameter of 46 (4680 and 46120) on the market. Perhaps only some B-grade batteries are in circulation. Our company obtained BYD's sales authorization in 2024. Today, let us introduce the parameter details of BYD's 4680 and 46120 batteries for everyone.
Appearance:

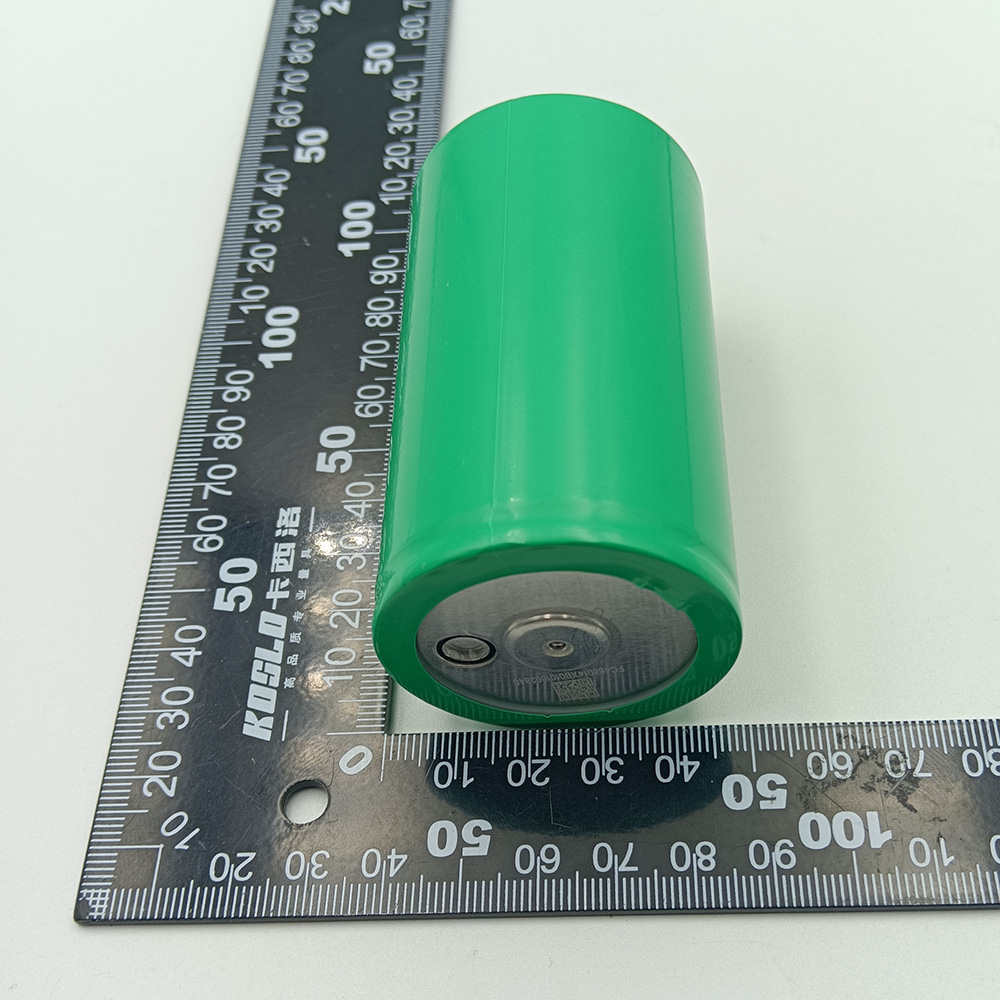

4680:
46120:

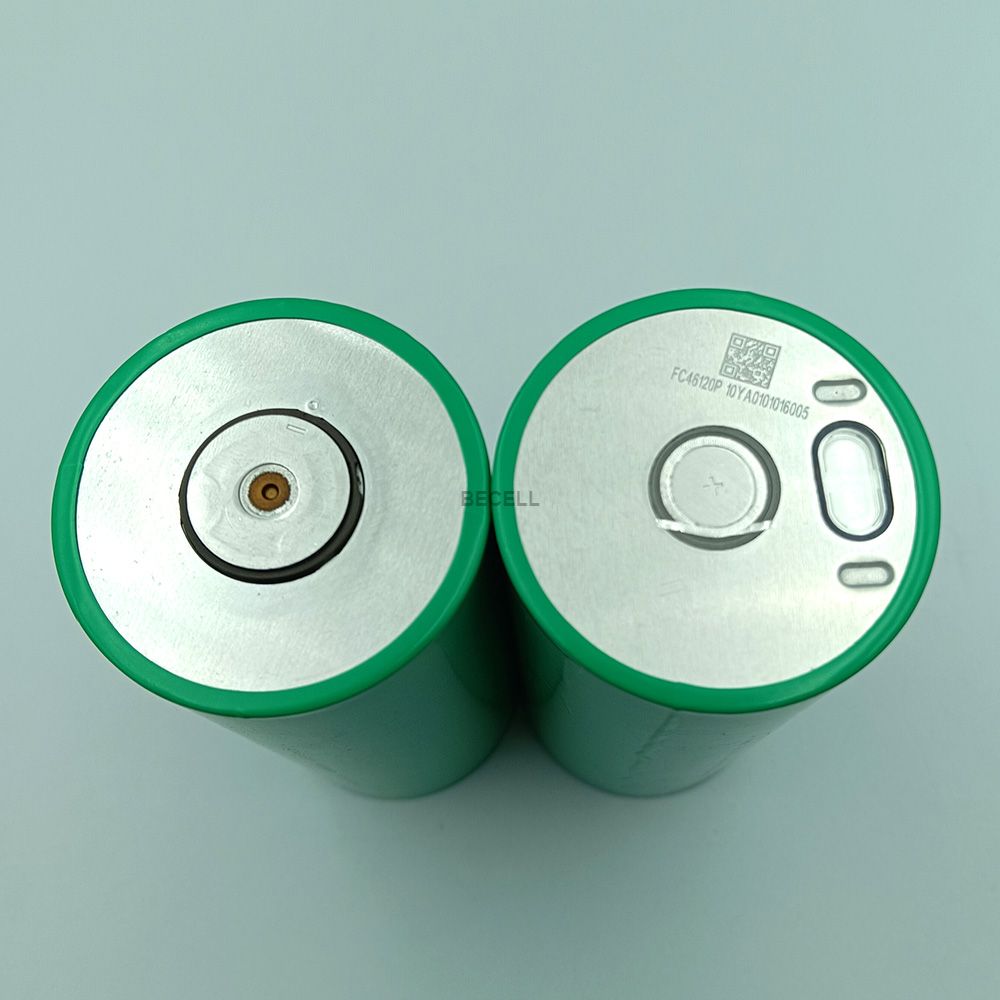

Note: Both of these two batteries have an explosion-proof valve on the small plug at the top of the battery (next to the positive terminal).
Main features 4680 parameters: Model: BYD FC4680P Rated capacity: 15 Ah Typical capacity: 15.3Ah Actual measured capacity: 15.3Ah Rated voltage: 3.2V Maximum continuous discharge current: 45A Maximum charging current: 15A Size: 46.3 +/-0.25mm x 80.2 +/-0.3mm Weight: 0.335kg
46120 parameters: Model: BYD FC4680P Rated capacity: 24 Ah Typical capacity: 24.5Ah Actual measured capacity: 25Ah Rated voltage: 3.2V Maximum continuous discharge current: 60A Maximum charging current: 24A Size: 46.60*:121.00mm Weight: 453 ± 10g

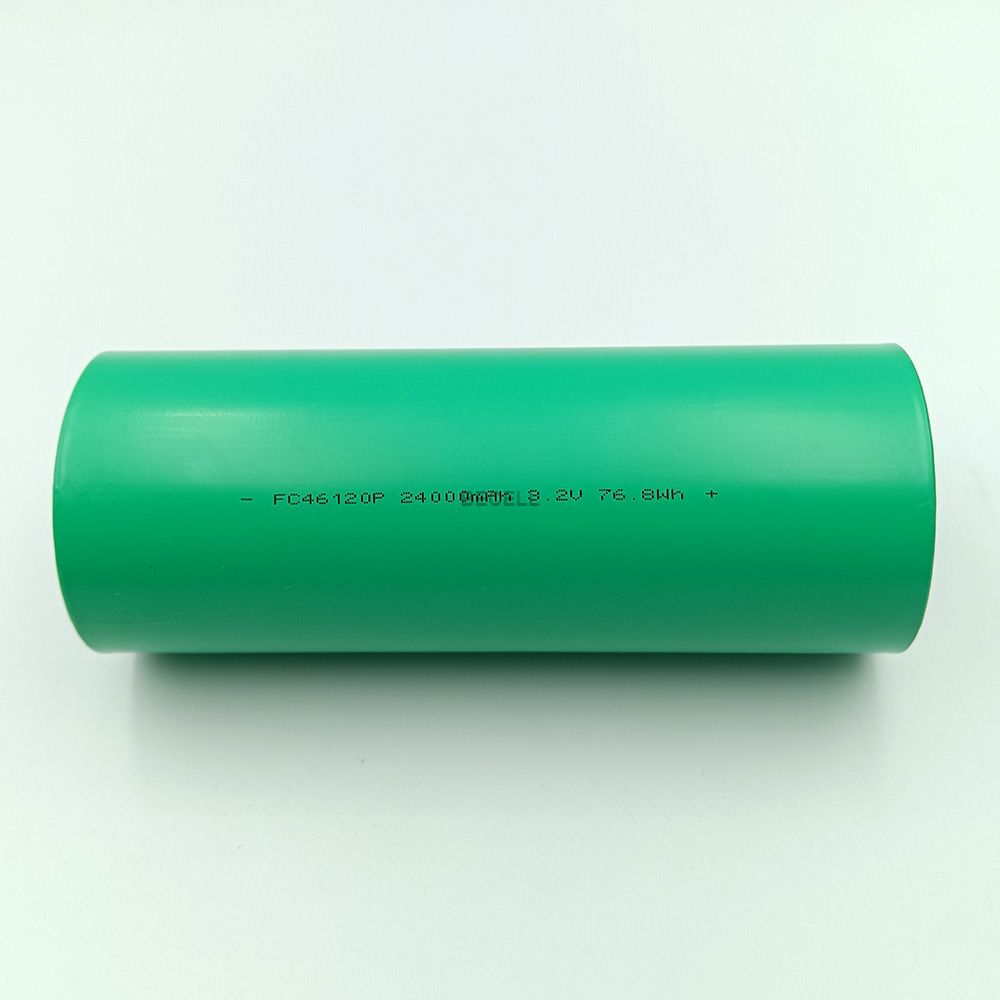

Appearance: Both BYD 4680 and 46120 battery cells are designed in a cylindrical shape. They all adopt green battery cell sleeve film colors, and the sleeve film colors can be adjusted according to requirements to meet the diverse needs of customers. The material is lithium iron phosphate. One side of BYD's 4680 battery cell has a spray code of "Model 4680, capacity 15000mAh" and "+", "-" positive and negative pole markings. One side of BYD's 46120 battery cell has a spray code of "Model 46120, capacity 24000mAh" and "+", "-" positive and negative pole markings. The negative electrode contact surfaces of BYD's 4680 and 46120 battery cells are all made of alloy metal materials and processed by anodic oxidation technology, which is durable and corrosion-resistant.
The positive electrode contact surfaces of BYD's 4680 and 46120 battery cells are both made of alloy materials and have a pressure relief valve and factory coding.
Our company provides brand new A-grade BYD batteries. If you need them, please contact us to get the latest quotation.
