280Ah
Hthium

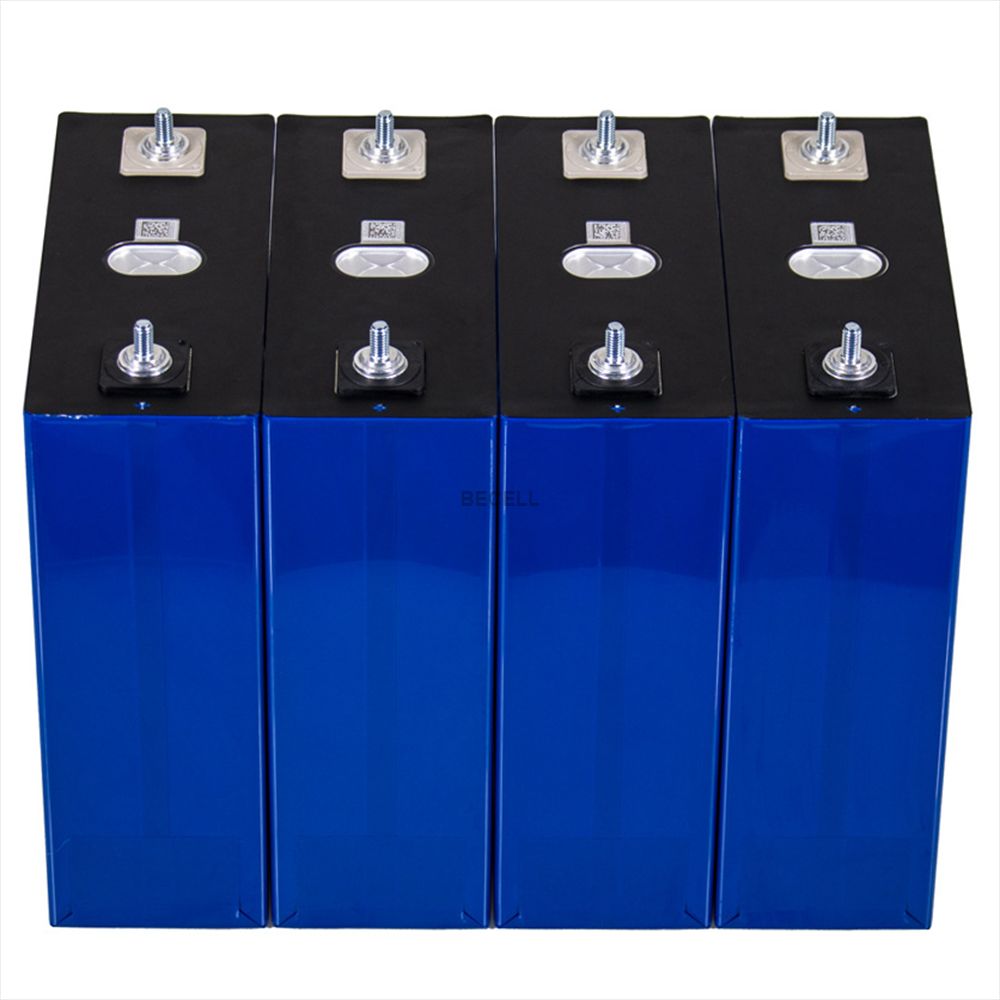

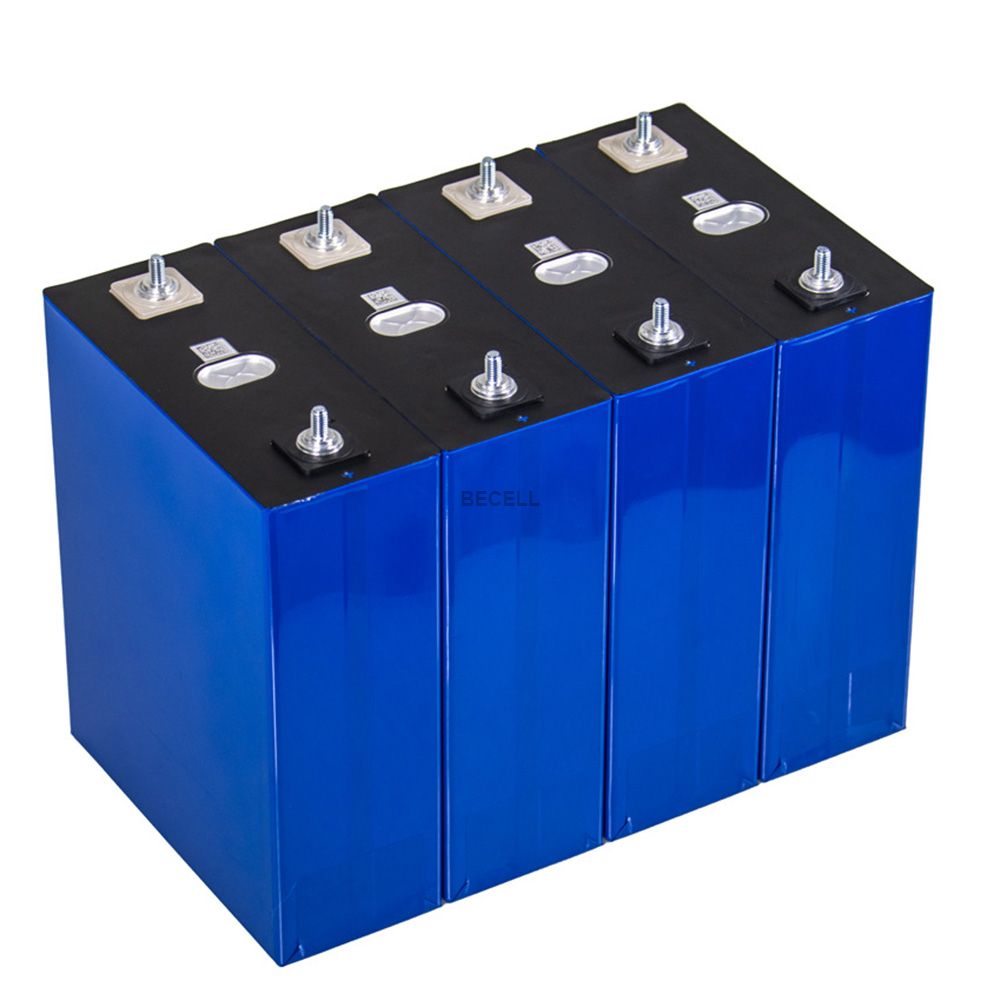

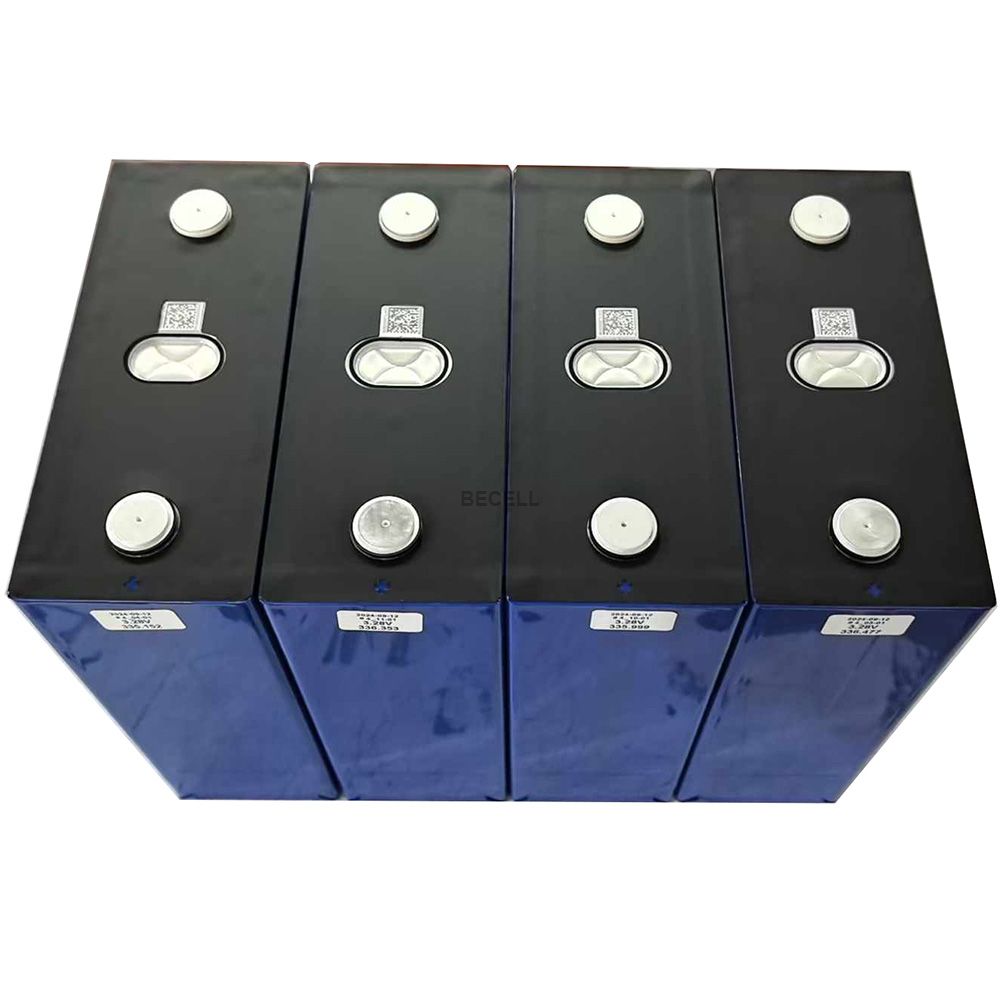

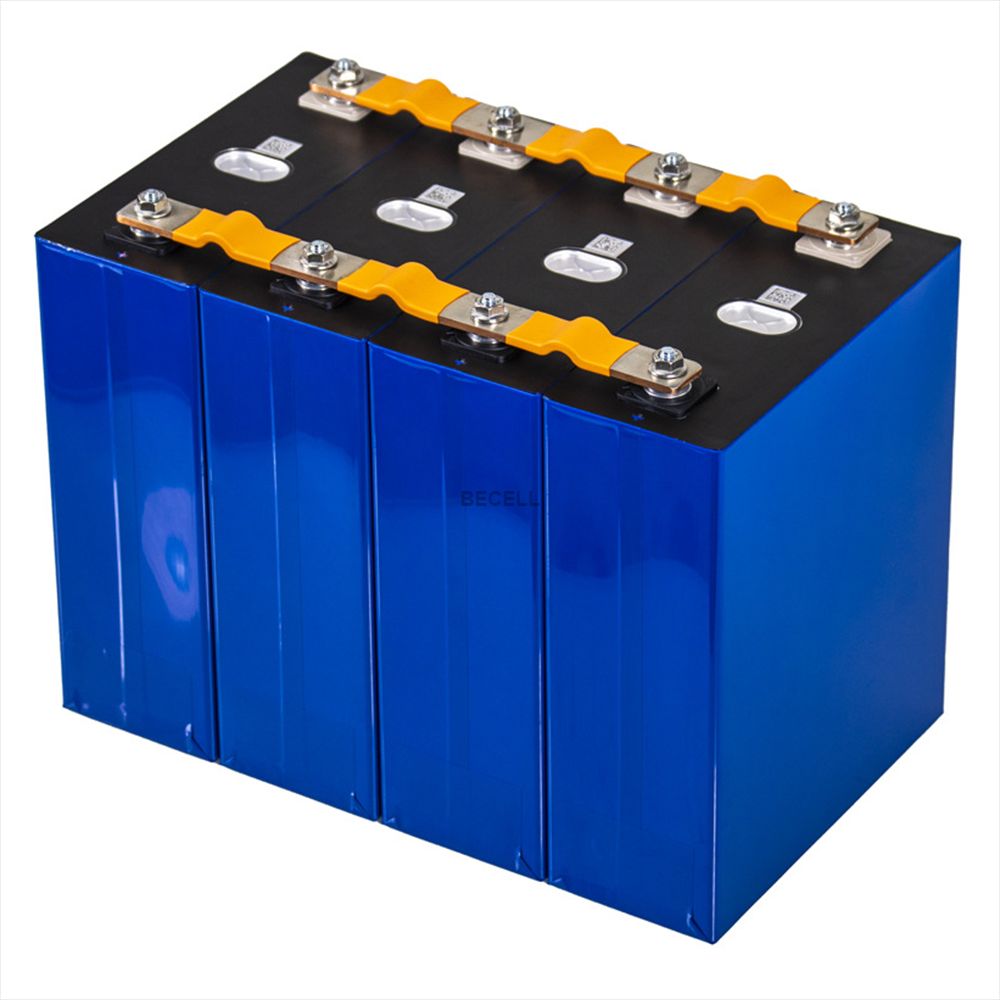

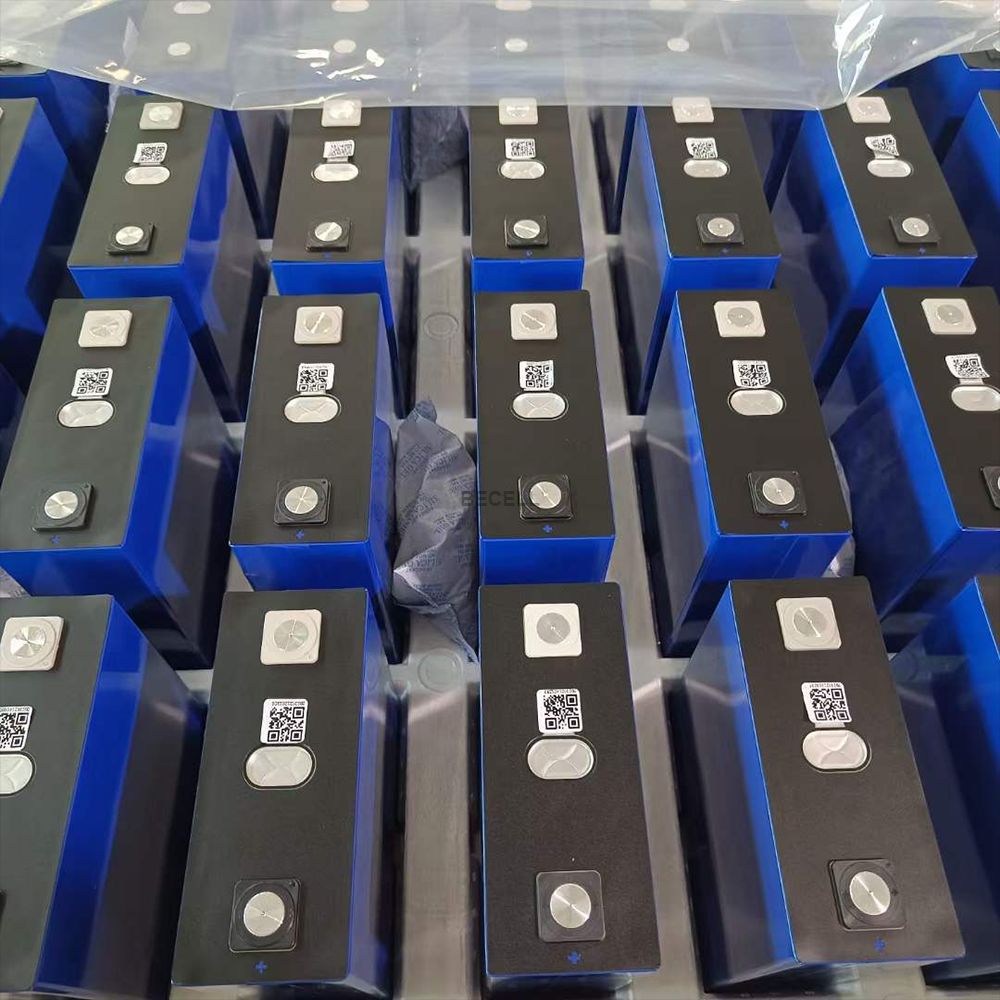

The Hthium LFP71173207/280Ah lithium iron phosphate (LiFePO4) battery cell is an advanced power solution designed for high-performance applications requiring long cycle life and stable energy output. With a nominal capacity of 280Ah and a nominal voltage of 3.2V, this cell delivers a nominal energy of 896Wh, making it an ideal choice for large-scale energy storage systems, solar applications, and electric vehicle power.
Model: LFP71173207/280Ah
Nominal Voltage: 3.2V
Nominal Capacity: 280Ah
Nominal Energy: 896Wh
Cell Weight: (5.43 ± 0.20) kg
Factory Internal Resistance (1kHz): (0.18 ± 0.05) mΩ
The cell operates within a stable voltage range designed to optimize both performance and safety:
Operating Voltage:
2.5–3.65V at temperatures above 0°C
2.0–3.65V at temperatures of 0°C or below
This wide voltage range allows for efficient operation across various temperatures, ensuring reliability in diverse environments.
The Hthium 280Ah cell is designed to support over 10,000 charge-discharge cycles under standard conditions, significantly enhancing the lifecycle of the battery and offering long-term cost efficiency. This extended cycle life makes it particularly suited for applications requiring reliable and long-lasting power solutions, such as renewable energy storage and electric mobility.
High Capacity & Stability: The 280Ah capacity provides sustained power, ensuring smooth operation in demanding applications.
Thermal Stability & Safety: LiFePO4 chemistry offers excellent thermal stability, reducing the risk of overheating and providing a safe solution for various energy needs.
Low Internal Resistance: With a factory internal resistance of approximately 0.18 mΩ, this cell enables efficient energy flow and minimizes power loss, further enhancing performance.
This high-capacity LiFePO4 cell is ideal for:
Solar energy storage systems
Electric vehicle power systems
Backup power supplies
Off-grid and renewable energy solutions
The Hthium LFP71173207/280Ah cell combines safety, durability, and robust power output to meet the requirements of modern energy storage and transportation systems. With its high capacity, long cycle life, and stable performance, it is a reliable choice for anyone seeking high-quality and sustainable energy solutions.
